. 2025 Aug 1;18(15):3631.
doi: 10.3390/ma18153631.

Fracture Behavior of Steel-Fiber-Reinforced High-Strength Self-Compacting Concrete: A Digital Image Correlation Analysis

Maoliang Zhang  1   2 , Junpeng Chen  3 , Junxia Liu  3 , Huiling Yin  1   2 , Yan Ma  1   2 , Fei Yang  3
Affiliations

Fracture Behavior of Steel-Fiber-Reinforced High-Strength Self-Compacting Concrete: A Digital Image Correlation Analysis

Maoliang Zhang et al. Materials (Basel). .

Abstract

In this study, steel fibers were used to improve the mechanical properties of high-strength self-compacting concrete (HSSCC), and its effect on the fracture mechanical properties was investigated by a three-point bending test with notched beams. Coupled with the digital image correlation (DIC) technique, the fracture process of steel-fiber-reinforced HSSCC was analyzed to elucidate the reinforcing and fracture-resisting mechanisms of steel fibers. The results indicate that the compressive strength and flexural strength of HSSCC cured for 28 days exhibited an initial decrease and then an enhancement as the volume fraction (Vf) of steel fibers increased, whereas the flexural-to-compressive ratio linearly increased. All of them reached their maximum of 110.5 MPa, 11.8 MPa, and 1/9 at 1.2 vol% steel fibers, respectively. Steel fibers significantly improved the peak load (FP), peak opening displacement (CMODP), fracture toughness (KIC), and fracture energy (GF) of HSSCC. Compared with HSSCC without steel fibers (HSSCC-0), the FP, KIC, CMODP, and GF of HSSCC with 1.2 vol% (HSSCC-1.2) increased by 23.5%, 45.4%, 11.1 times, and 20.1 times, respectively. The horizontal displacement and horizontal strain of steel-fiber-reinforced HSSCC both increased significantly with an increasing Vf. HSSCC-0 experienced unstable fracture without the occurrence of a fracture process zone during the whole fracture damage, whereas the fracture process zone formed at the notched beam tip of HSSCC-1.2 at its initial loading stage and further extended upward in the beams of high-strength self-compacting concrete with a 0.6% volume fraction of steel fibers and HSSCC-1.2 as the load approaches and reaches the peak.

Keywords: digital image correlation technology; fracture mechanical properties; fracture toughness; high-strength self-compacting concrete.

PubMed Disclaimer

Conflict of interest statement

Authors Maoliang Zhang, Huiling Yin and Yan Ma were employed by the company Henan Building Materials Research and Design Institute Co., Ltd. The remaining authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

Figures

Figure 1
Figure 1

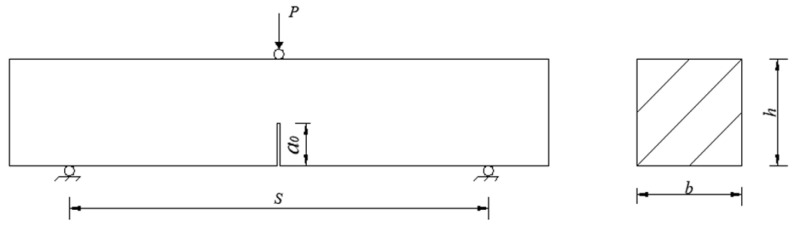

Notched three-point bending beams and its dimensions.
Figure 2
Figure 2

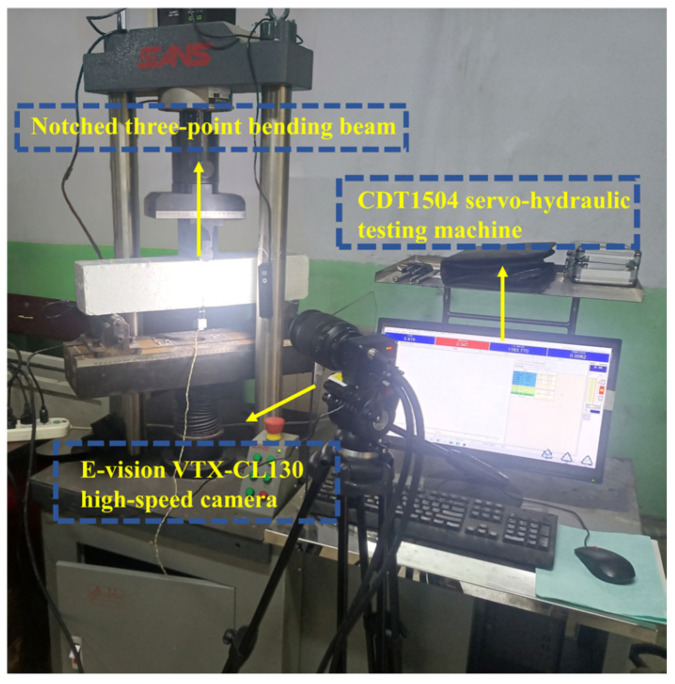

Fracture test site coordinated with DIC technology.
Figure 3
Figure 3

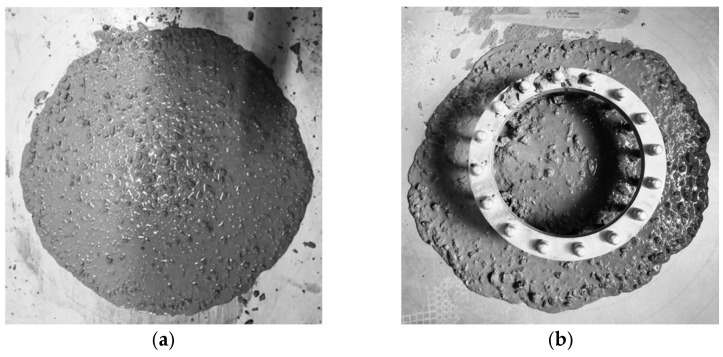

Workability of fresh mixed steel-fiber-reinforced HSSCC: (a) slump extension and T500 and (b) J-ring extension.
Figure 4
Figure 4

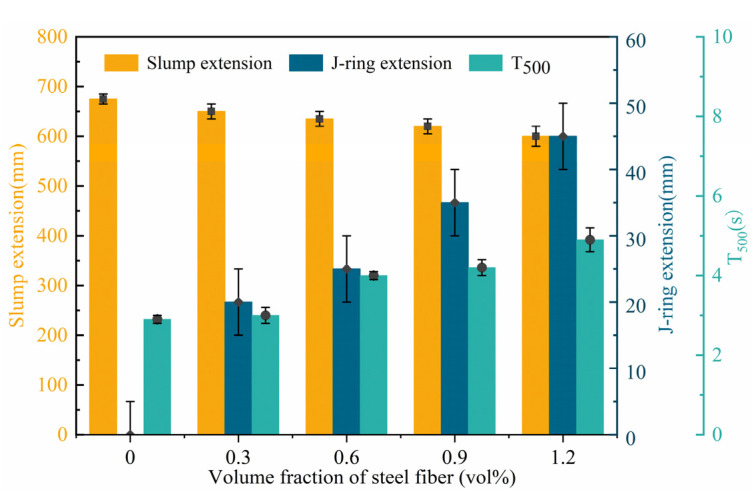

Workability of steel-fiber-reinforced HSSCC.
Figure 5
Figure 5

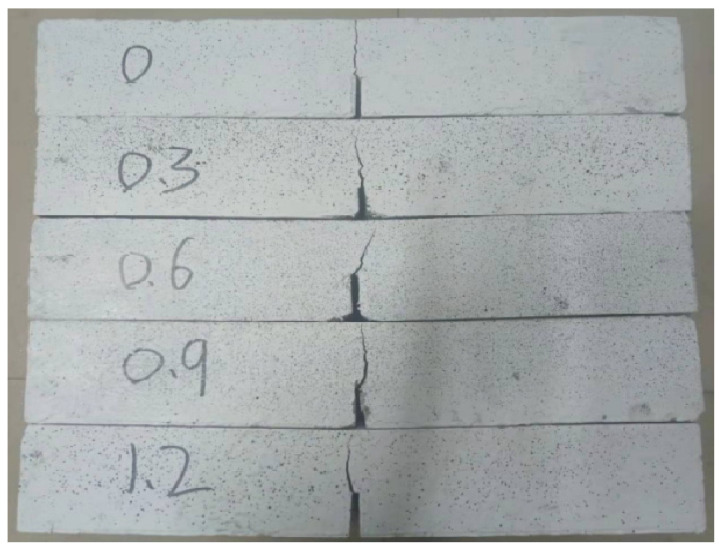

Failure modes of notched three-point bending beams.
Figure 6
Figure 6
Mechanical properties of steel-fiber-reinforced HSSCC.
Figure 7
Figure 7

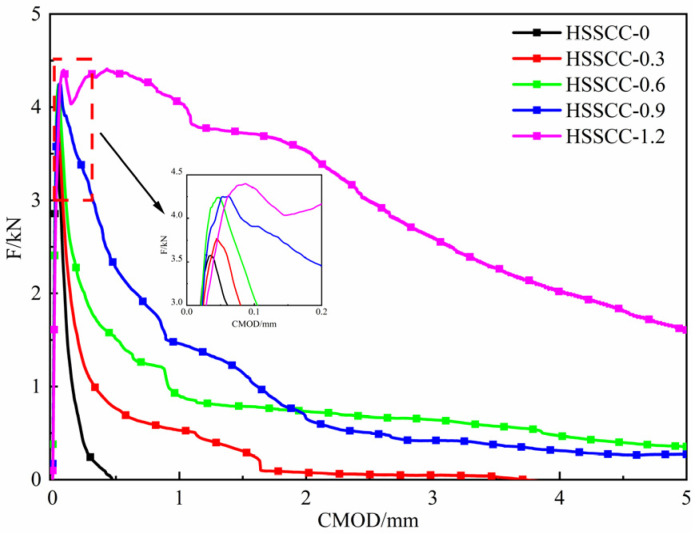

F-CMOD curves of steel-fiber-reinforced HSSCC.
Figure 8
Figure 8

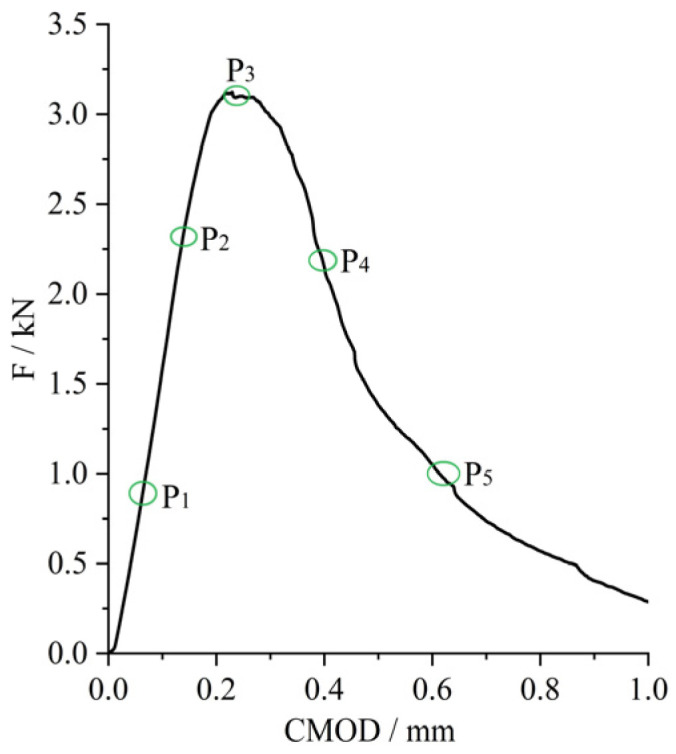

Illustration of observation segments selected for fracture process.
Figure 9
Figure 9

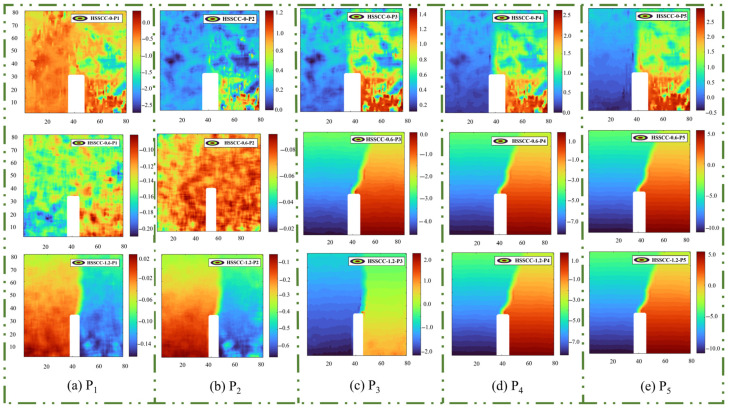

Horizontal displacement contours of steel-fiber-reinforced HSSCC at varied observation segments: (a) Observation Point P1 of the fracture process; (b) Observation Point P2 of the fracture process; (c) Observation Point P3 of the fracture process; (d) Observation Point P4 of the fracture process; (e) Observation Point P5 of the fracture process.
Figure 10
Figure 10

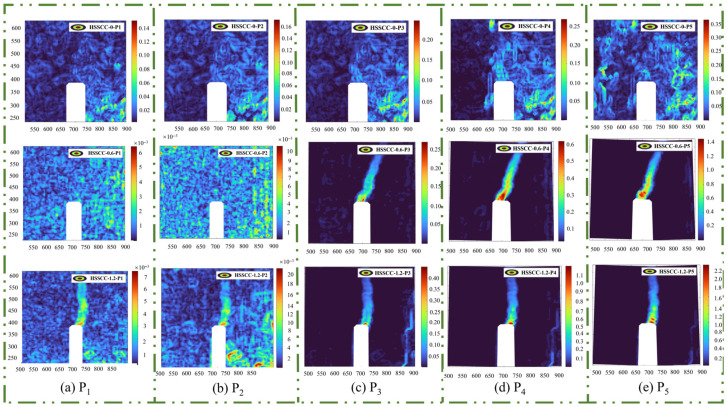

Horizontal strain cloud of steel-fiber-reinforced HSSCC at varied observation segments: (a) Observation Point P1 of the fracture process; (b) Observation Point P2 of the fracture process; (c) Observation Point P3 of the fracture process; (d) Observation Point P4 of the fracture process; (e) Observation Point P5 of the fracture process.
