. 2025 Aug 19;15(1):30372.
doi: 10.1038/s41598-025-16285-x.

Maximizing the combustion phenomenon with reduced emission of a compression ignition engine fulled with Dunaliella salina biodiesel and hydrogen blends

V Hariram  1 , R Sathishbabu  2 , J Godwin John  3 , Nandagopal Kailiappan  4 , K Vijayakumar  5 , E Sangeeth Kumar  6 , K Kamakshi Priya  7
Affiliations

Maximizing the combustion phenomenon with reduced emission of a compression ignition engine fulled with Dunaliella salina biodiesel and hydrogen blends

V Hariram et al. Sci Rep. .

Abstract

Energy resource sustainability has been of critical concern as a result of unlimited energy demand worldwide. In this research work, extraction of the alternate fuel for diesel (i.e., biodiesel) from the source Dunaliella salina, which is a greenish microalga with higher lipid content comparatively, is being primarily addressed. Cultivation was provided under nitrogen starvation, f/2 trace-element supplemented, nutrient medium supplemented with vitamins and CO2. Ultrasonic extraction method at 50 Hz yielded 645 ml of Dunaliella salina bio-oil in repeated batches. One stage base catalysed process of transesterification with 1:8 mol ratio of methanol to oil, 0.6% w/w NaOH catalyst, reaction temperature of 50 °C and reaction time of 120 min yielded 612 ml Dunaliella salina biodiesel in 6 batches with 94.8% efficiency in transesterification. Physio-chemical properties of the produced biodiesel were determined to be as per ASTM specifications. Additional GCMS, NMR and FTIR spectroscopic study of the derived biodiesel established its suitability for CI engine. Dunaliella salina biodiesel blend at 20% volume ratio was compared with diesel on combustion, emission and performance characteristics of Kirloskar 240 PE test engine. Additional supplementation of Hydrogen by DuSaBD20 at 3 LPM, 6 LPM and 9 LPM had pronounced impact on the engine performance with remarkable CO reduction and UBHC and a slight increase in engine NOx was observed. Additionally, the study of cost of operation on H2 induction was also investigated.

Keywords: Algae; Hydrogen; Improved combustion; Performance; Reduced emission.

PubMed Disclaimer

Conflict of interest statement

Declarations. Competing interests: The authors declare no competing interests.

Figures

Fig. 1
Fig. 1
Dunaliella salina – Microscopic view (A,B), extraction of oil (C) and Biodiesel (D).
Fig. 2
Fig. 2
Experimental test engine and schematic.
Fig. 3
Fig. 3
GCMS Chromatogram of Dunaliella salina biodiesel.
Fig. 4
Fig. 4
FT IR tranmittance spectrum of Dunaliella salina biodiesel.
Fig. 5
Fig. 5
1H NMR spectrum of Dunaliella salina biodiesel.
Fig. 6
Fig. 6
13C NMR spectrum of Dunaliella salina biodiesel.
Fig. 7
Fig. 7
In-cylinder pressure variation with straight diesel, Dunaliella saline biodiesel with H2 supplementation.
Fig. 8
Fig. 8
Rate of pressure variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
Fig. 9
Fig. 9
Net heat release variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
Fig. 10
Fig. 10
Cumulative heat release variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.

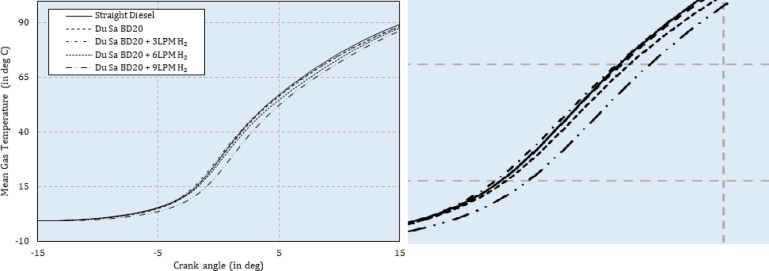

Fig. 11
Fig. 11
Mean gat temperature variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
Fig. 12
Fig. 12
UBHC Emission variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
Fig. 13
Fig. 13
CO Emission variation with Straight Diesel, Dunaliella salina Biodiesel with H2 supplementation.
Fig. 14
Fig. 14
CO2 Emission variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
Fig. 15
Fig. 15
NOx Emission variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
Fig. 16
Fig. 16
Smoke emission variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
Fig. 17
Fig. 17
BSFC variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.

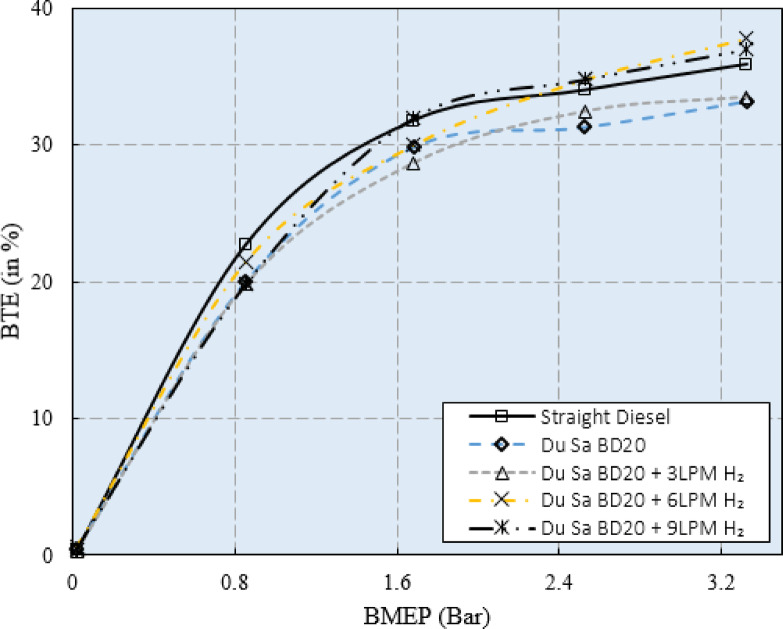

Fig. 18
Fig. 18
BTE variation with straight diesel, Dunaliella salina biodiesel with H2 supplementation.
See this image and copyright information in PMC

References

    1. Qiu, Z., Chen, R., Gan, X. & Wu, C. Torsional damper design for diesel engine: theory and application. Phys. Scr.99 (12), 125214. 10.1088/1402-4896/ad8af8 (2024).
    1. Venkatesan, H., Sivamani, S., Premkumar, T. M. & Tharun, P. Reduction of exhaust emissions using a nanometallic enriched Lemongrass biodiesel blend. Energy Sour. Part A Recover. Utilization Environ. Eff.39 (21), 2065–2071 (2017).
    1. Guo, H. et al. Transient lubrication of floating Bush coupled with dynamics and kinematics of cam-roller in fuel supply mechanism of diesel engine. Phys. Fluids. 36 (12), 123103. 10.1063/5.0232226 (2024).
    1. Christopher Selvam et al., (2025). Improving diesel engine performance with hydrogen-fumigated soapnut biodiesel. Results in Engineering, 27, 106287. https://doi.org/10.1016/j.rineng.2025.106287
    1. Naureen, R., Tariq, M., Yusoff, I., Chowdhury, A. J. & Ashraf, M. A. Synthesis, spectroscopic and chromatographic studies of sunflower oil biodiesel using optimized base catalyzed methanolysis. Saudi J. Biol. Sci.22 (3), 332–339 (2015). - PMC - PubMed
