. 2025 Jul 22;13(8):333.
doi: 10.3390/dj13080333.

Digitally-Driven Surgical Guide for Alveoloplasty Prior to Immediate Denture Placement

Zaid Badr  1 , Jonah Jaworski  1 , Sofia D'Acquisto  2 , Manal Hamdan  3
Affiliations

Digitally-Driven Surgical Guide for Alveoloplasty Prior to Immediate Denture Placement

Zaid Badr et al. Dent J (Basel). .

Abstract

Objective: This article presents a step-by-step digital technique for fabricating a 3D-printed surgical guide to assist in alveoloplasty for immediate denture placement. Methods: The workflow integrates intraoral scanning, virtual tooth extraction, digital soft tissue modeling, and additive manufacturing to produce a customized guide with an occlusal window and buccal slot, along with a verification stent. Results: This method ensures precise ridge recontouring and verification, enhancing surgical predictability and prosthetic fit. Conclusions: Unlike traditional surgical guides based on conventional casts or manual fabrication, this fully digital approach offers a practical and replicable protocol that bridges digital planning and clinical execution. By improving surgical precision, reducing operative time, and ensuring optimal denture fit, this technique represents a significant advancement in guided pre-prosthetic surgery.

Keywords: additive manufacturing; alveoloplasty; immediate denture; surgical guide.

PubMed Disclaimer

Conflict of interest statement

The authors declare no conflicts of interest.

Figures

Figure 1
Figure 1
Pre-operative maxillary and mandibular digital impressions imported into 3Shaped Dental Manager.
Figure 2
Figure 2
Using the Tooth Removal Tool: (a) the tooth to be virtually extracted is selected; (b) the tooth is virtually extracted after selection.
Figure 3
Figure 3

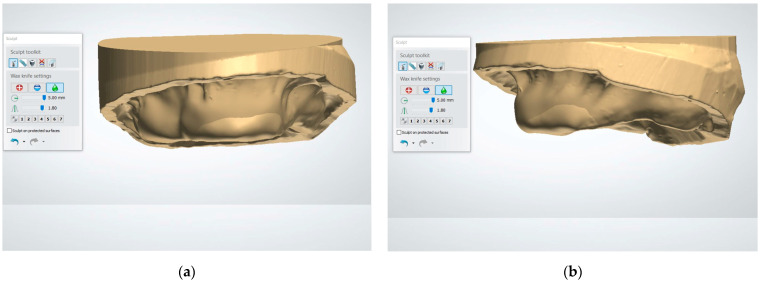

The virtual alveolopasty procedure using the Wax Knife tool to remove the undercuts and irregular ridge contours: (a) frontal view; (b) lateral view.
Figure 4
Figure 4
The immediate denture is designed based on the new maxillary arch contours.
Figure 5
Figure 5
The denture base of the immediate denture design is segmented and exported in STL format.
Figure 6
Figure 6
The denture base of the immediate denture design is used to design the surgical guide using Autodesk Meshmixer. The surgical guide is designed with a buccal cut and occlusal slot.
Figure 7
Figure 7
3D-printed surgical guide: (a) before adjustment, the flexibility of the selected material allows for the insertion of the guide underneath the undercut; (b) after adjustment, the width of the anterior slot is used to verify adequate buccal ridge augmentation.
Figure 8
Figure 8
A 3D-printed verification stent is used to verify the proper ridge contours.
Figure 9
Figure 9
Flowchart summarizing the digital workflow for designing and fabricating the surgical guide and verification stent.
See this image and copyright information in PMC

References

    1. Dean O.T. Surgery for the denture patient. J. Am. Dent. Assoc. 1936;23:2124–2128.
    1. Hillerup S. Preprosthetic surgery in the elderly. J. Prosthet. Dent. 1994;72:551–558. doi: 10.1016/0022-3913(94)90130-9. - DOI - PubMed
    1. Schweiger J., Edelhoff D., Güth J.F. 3D Printing in Digital Prosthetic Dentistry: An Overview of Recent Developments in Additive Manufacturing. J. Clin. Med. 2021;10:2010. doi: 10.3390/jcm10092010. - DOI - PMC - PubMed
    1. Nagata K., Fuchigami K., Hoshi N., Atsumi M., Kimoto K., Kawana H. Accuracy of guided surgery using the silicon impression and digital impression method for the mandibular free end: A comparative study. Int. J. Implant. Dent. 2021;7:2. doi: 10.1186/s40729-020-00281-z. - DOI - PMC - PubMed
    1. Bourgoyne J.R. Alveoloplasty in preparation for the immediate denture insertion. J. Prosthet. Dent. 1951;1:254–267. doi: 10.1016/0022-3913(51)90058-3. - DOI - PubMed
