Case Reports
. 2025 Oct;26(10):e70270.
doi: 10.1002/acm2.70270.

Breath-holding treatments in tomotherapy with active breathing coordinator: A first case report

April Meikwan Chow  1 , Ashley Chi Kin Cheng  2   3   4 , Louis Kit Yee Lee  1   3
Affiliations
Case Reports

Breath-holding treatments in tomotherapy with active breathing coordinator: A first case report

April Meikwan Chow et al. J Appl Clin Med Phys. 2025 Oct.

Abstract

Purpose: Respiratory motion poses a significant challenge in radiation therapy for thoracic and abdominal malignancies. For tomotherapy machines, it is even more challenging due to the 10-s warm-up time before initiating the treatment beams. A recent tomotherapy system upgrade has reduced this warm-up time to 0.5 s for the TomoDirect delivery mode, enabling the feasibility of performing breath-holding treatments. In this study, we investigated the feasibility of performing breath-holding treatments on a tomotherapy machine with spirometry technique.

Methods: A patient with gastric mucosa-assisted lymphoid tissue lymphoma was treated with deep inspiration breath holding (30 Gy in 20 fractions) on a tomotherapy machine with Active Breathing Coordinator™. An in-house visual system, featuring a compact 7″ LCD monitor, was implemented to provide visual feedback, allowing the patient to self-monitor their breathings and adhere to the prescribed pattern.

Results: The patient tolerated the breath-hold well for the entire treatment. The number of breath-holds for treatment was 9. The beam-on time for each field ranged from 12.4 to 19.7 s, average 15.2 s.

Conclusions: We have shown that BH treatment is feasible using an upgraded tomotherapy machine (Radixact v3.5) with Active Breathing Coordinator. Our proposed workflow includes an in-house visual system that allows patients to visualize their breathing patterns on-screen. This technique provides a practical solution for patients with thoracic and abdominal malignancies, addressing respiratory motion while minimizing radiation exposure for certain diseases.

Keywords: active breathing coordinator; breath‐holding treatment; tomotherapy.

PubMed Disclaimer

Conflict of interest statement

The authors have nothing to report.

Figures

FIGURE 1
FIGURE 1

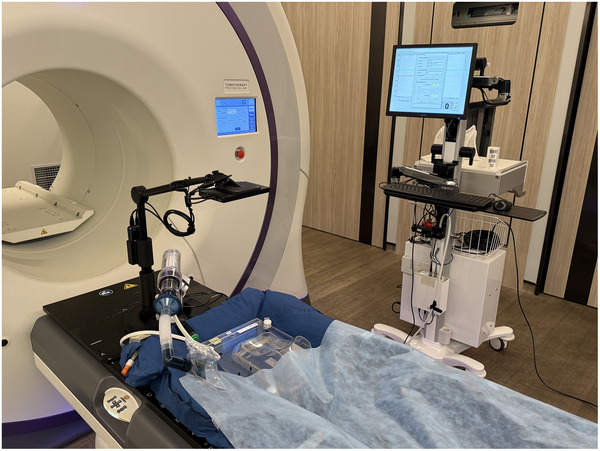

Photo showing the ABC setup with the in‐house visual system.
FIGURE 2
FIGURE 2
Axial, sagittal and coronal planes for the dose distribution of the treatment plan.
FIGURE 3
FIGURE 3

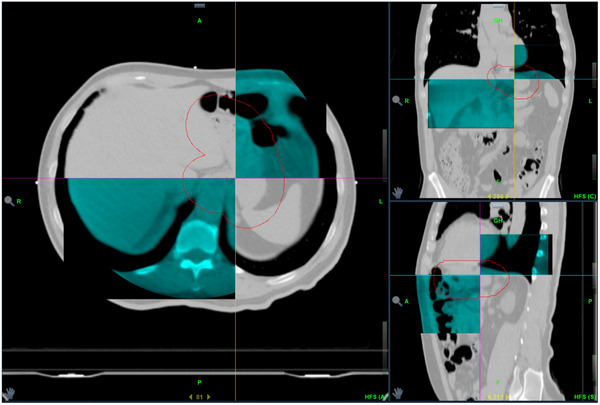

Axial, sagittal and coronal planes of a set of typical matching images for positional verification. grey color: planning CT images; cyan colour: kVCT images taken during image guidance.
See this image and copyright information in PMC

References

    1. Keall PJ, Mageras GS, Balter JM, et al. The management of respiratory motion in radiation oncology report of AAPM task group 76. Med Phys. 2006;33(10):3874‐3900. doi: 10.1118/1.2349696 - DOI - PubMed
    1. Dhont J, Harden SV, Chee LYS, Aitken K, Hanna GG, Bertholet J. Image‐guided radiotherapy to manage respiratory motion: lung and liver. Clin Oncol (R Coll Radiol). 2020;32(12):792‐804. doi: 10.1016/j.clon.2020.09.008 - DOI - PubMed
    1. Starkschall G, Forster KM, Kitamura K, Cardenas A, Tucker SL, Stevens CW. Correlation of gross tumor volume excursion with potential benefits of respiratory gating. Int J Radiat Oncol Biol Phys. 2004;60(4):1291‐1297. doi: 10.1016/j.ijrobp.2004.07.707 - DOI - PubMed
    1. Underberg RW, Lagerwaard FJ, Cuijpers JP, Slotman BJ, van Sornsen de Koste JR, Senan S. Four‐dimensional CT scans for treatment planning in stereotactic radiotherapy for stage I lung cancer. Int J Radiat Oncol Biol Phys. 2004;60(4):1283‐1290. doi: 10.1016/j.ijrobp.2004.07.665 - DOI - PubMed
    1. Blomgren H, Lax I, Naslund I, Svanstrom R. Stereotactic high dose fraction radiation therapy of extracranial tumors using an accelerator. Clinical experience of the first thirty‐one patients. Acta Oncol. 1995;34(6):861‐870. doi: 10.3109/02841869509127197 - DOI - PubMed
