. 2025 Oct 2;15(1):34368.
doi: 10.1038/s41598-025-17026-w.

Numerical investigation of the influence of air layer on the melting behavior of RT42 PCM in a multi-hexagonal cell

Karrar A Hammoodi  1 , Walaa Nasser Abbas  2   3 , Elaf S Barrak  4 , Ravishankar Sathyamurthy  5   6 , Abdallah Bouabidi  7 , Issa Omle  8 , Mujtaba A Flayyih  9 , Hasan Qahtan Hussein  10 , Saif Ali Kadhim  11
Affiliations

Numerical investigation of the influence of air layer on the melting behavior of RT42 PCM in a multi-hexagonal cell

Karrar A Hammoodi et al. Sci Rep. .

Abstract

To meet the growing need for sustainable energy solutions, improving the efficiency of thermal energy storage (TES) systems is important. In this study, the melting behavior of RT42 paraffin wax inside a hexagonal multi-cell was analyzed using numerical simulation based on the enthalpy-porosity method with ANSYS/FLUENT 16 software. The study focused on evaluating the effect of changing the thickness of the central air layer on the melting efficiency of the phase change material (PCM). Four cases were tested: one without an air layer and three others with thicknesses of 2 mm, 4 mm, and 6 mm. The results showed a clear quantitative relationship between the thickness of the air layer and the increase in melting time. The total time increased from 660 min (without air) to 780 min with a 2 mm thick air layer, an increase of 18%. The time reached 900 min at a thickness of 4 mm (37%) and 960 min at 6 mm (50%). These results show how important internal air layers are in reducing heat transfer efficiency, and how important it is to take them into account when designing phase change material-based thermal energy storage systems to get better performance and sustainability.

Keywords: Air layer; Hexagonal cells; Melting process; PCMs; RT42 paraffin wax.

PubMed Disclaimer

Conflict of interest statement

Declarations. Competing interests: The authors declare no competing interests.

Figures

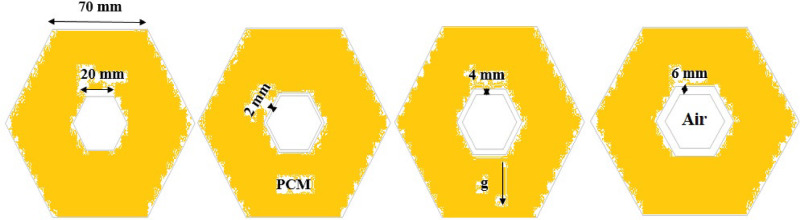

Fig. 1
Fig. 1
Configuration of physical model.
Fig. 2
Fig. 2
Configuration of the mesh model.
Fig. 3
Fig. 3
Grid independency without fins.
Fig. 4
Fig. 4
Distinction of the melting fraction versus operating time for this study against the research.
Fig. 5
Fig. 5
Predicted evolution of the melting process without layer of air.
Fig. 6
Fig. 6
Temperature distributions with without layer of air.
Fig. 7
Fig. 7
Velocity distributions without a layer of air.

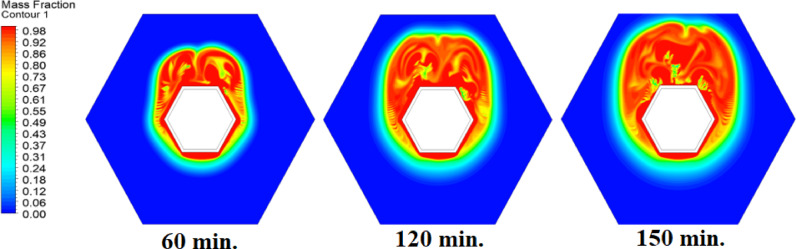

Fig. 8
Fig. 8
Predicted evolution of the melting process with layer of air (2 mm).
Fig. 9
Fig. 9
Temperature distributions with layer of air (2 mm).
Fig. 10
Fig. 10
Velocity distributions with a layer of air (2 mm).
Fig. 11
Fig. 11
Predicted evolution of the melting process with layer of air (4 mm).
Fig. 12
Fig. 12
Temperature distributions with layer of air (4 mm).
Fig. 13
Fig. 13
Velocity distributions with a layer of air (4 mm).

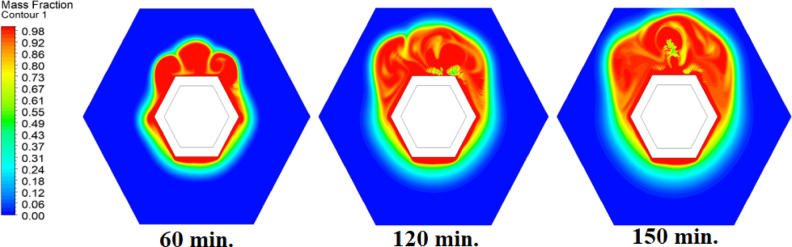

Fig. 14
Fig. 14
Predicted evolution of the melting process with layer of air (6 mm).
Fig. 15
Fig. 15
Temperature distributions with layer of air (6 mm).
Fig. 16
Fig. 16
Velocity distributions with a layer of air (6 mm).
Fig. 17
Fig. 17
Comparison of the melting process between the all cases.
Fig. 18
Fig. 18
Variation of melt fraction.
