. 2025 Oct 6;15(1):34729.
doi: 10.1038/s41598-025-18368-1.

A novel way to optimize the process parameters by integrating the grey relational coefficient and the combined compromise solution for machining the CFRP composites

K Shunmugesh  1 , Arun Raphel  2 , Sony Kurian  3 , Shivashankarayya Hiremath  4 , Gajanan Anne  5 , B R N Murthy  5 , H M Vishwanatha  6
Affiliations

A novel way to optimize the process parameters by integrating the grey relational coefficient and the combined compromise solution for machining the CFRP composites

K Shunmugesh et al. Sci Rep. .

Abstract

The quality of carbon fiber-reinforced plastic (CFRP) machining during wet drilling is strongly influenced by the moisture content and cutting tool geometry. The current investigation aims to determine the optimum drilling process parameters for machining CFRPs by combining the grey relational coefficient with the combined compromise solution (Grey-CoCoSo). A distance correlation-based criterion importance through intercriteria correlation (D-CRITIC) method was used to ascertain the weights of decision-making to manage the responses from multiple-measure decision-making. Several multiresponse outputs—the material removal rate (MRR), surface roughness (Ra), and delamination factor (DF)—were taken into consideration during the analysis of the input factors—the spindle speed (N), drill diameter (D), and feed rate (F). An enhanced MRR and reduced Ra and DF were achieved due to the optimal parametric conditions of D, F, and N when the D-CRITIC weight was set to 6 mm, 0.1 mm/rev, and 7500 rpm, respectively. As a result, the Ki value would have improved by 17.684%. Thus, N was found to be a pivotal parameter influencing MRR, DF, and Ra. The outcomes indicate that the proposed synergistic approach is beneficial for solving situations in which multicriteria decision-making is applicable to CFRPs. Compared with other conventional multicriteria decision-making approaches, the proposed newer approach is versatile and efficient in excluding variation. Thus, the grey-CoCoSo approach can be a promising way of optimizing process parameters for machining CFRPs.

Keywords: CFRP; CRITIC; CoCoSo; Composite industry; Grey relational analysis; Surface roughness.

PubMed Disclaimer

Conflict of interest statement

Declarations. Competing interests: The authors declare no competing interests.

Figures

Fig. 1
Fig. 1

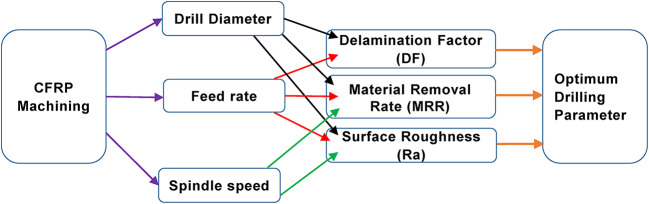

Framework of CFRP Machining.
Fig. 2
Fig. 2
Flowchart of Process Parameter Optimization.
Fig. 3
Fig. 3
Steps followed to determine the weights in D-CRITIC.
Fig. 4
Fig. 4
CFRP plate drilled with 8, 6, and 4 mm diameter holes.
Fig. 5
Fig. 5
Experimental Trials vs. GRG.
Fig. 6
Fig. 6
GRG Plot.
Fig. 7
Fig. 7
S/N Ratio of CoCoSo (Ki).
See this image and copyright information in PMC

References

    1. Ozkan, D., Gok, M. S. & Karaoglanli, A. C. Carbon fiber reinforced polymer (CFRP) composite materials, their characteristic properties, industrial application areas and their machinability. Engineering Design Applications III: Structures, Materials and Processes, pp.235–253. (2020). vol 124
    1. Ahmad Sobri, S., Heinemann, R. & Whitehead, D. Development of laser drilling strategy for thick carbon fibre reinforced polymer composites (CFRP). Polymers, 12(11), 2674 (2020). - PMC - PubMed
    1. Fleischer, J. et al. Composite materials parts manufacturing. CIRP Ann.67 (2), 603–626 (2018).
    1. Abd-Elwahed, M. S. et al. Experimental and numerical FEM of woven GFRP composites during drilling. Struct. Eng. Mech.80 (5), 503–522 (2021).
    1. Geng, Daxi., Liu, Y., Shao, Z., Lu, Z., Cai, J., Li, X., Jiang, X., Zhang, D.Delamination formation, evaluation and suppression during drilling of composite laminates: A review. Composite Structures, 216, 168–186 (2019).
