How to Select Each Component of CO2 Electrolyzers

Abstract

Electrochemical CO₂ electrolyzers are increasingly recognized for their potential to convert CO₂ into valuable chemical feedstocks, addressing critical environmental and economic challenges. Traditionally, the catalytic properties of the cathode, where CO₂RR directly occurs, have been the main focus of research due to their control over product selectivity. More recently, however, membrane-based electrolyzers-commonly used in fuel cells and water electrolyzers-have shown substantial potential for commercial CO₂ reduction, offering improved scalability and efficiency. Nevertheless, the complex components in membrane-based electrolyzers require precise optimization, as each unit directly impacts system performance and product selectivity. In this review, the structures and components of membrane-based CO₂ electrolyzers are systematically examined, including the electrolyzer design, flow channels, membranes, electrolytes, CO₂ supply units, and electrodes. Recent innovations in the optimization of these components are highlighted to provide insights into advancing CO₂RR technology toward commercially feasible applications. This approach can assist considerably in improving the CO₂RR electrolyzer performance, thereby helping predict optimal pathways for commercial realization and guide future development.

Keywords: CO2 electrolyzer; CO2 reduction reaction; flow channel; membrane; porous transfer electrode.

FIGURE 1

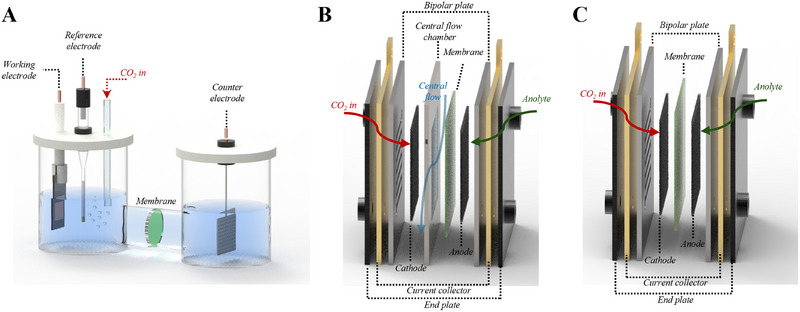

Schematic illustration of CO₂RR electrolyzers. (A) H‐type cell, (B) flow‐type electrolyzer, and (C) MEA‐type electrolyzer.

FIGURE 2

(A) Dioxide materials commercial electrolyzer: In the case of the above figure, customized parts are used for in‐situ experiments. Reproduced with permission [21]. Copyright 2023, American Chemical Society. (B) Electrolyzer with all parts customized.

FIGURE 3

(A) Three basic configurations of the gas flow channel. Reproduced with permission [46]. Copyright 2023, American Chemical Society. (B) CFD simulation results of the studied central flow channel. (C) Schematic illustration of CO₂RR flow‐type electrolyzers. Reproduced with permission [50]. Copyright 2023, Royal Society of Chemistry.

FIGURE 4

Ion transport mechanisms, polymer structures, and interfaces of bipolar membranes. (A) Schematic diagram of the ion transport mechanism in the membrane [60]. (B) Polymer structure of Sustainion [60]. (C) Quaternary ammonium poly(N‐methyl‐piperidine‐co‐p‐terphenyl) (QAPPT). Reproduced with permission [71]. Copyright 2023, American Chemical Society. (D) Perfluorinated sulfonic acid (PFSA) [60]. (E) Schematic diagrams of different interfaces of the bipolar membrane.^[81] Copyright 2021, Elsevier.

FIGURE 5

Research about different electrolytes in CO₂RR. (A) pH value of catholyte and anolyte to reaction time on both CEM and AEM, diagrams about CO₂RR in aqueous KHCO₃. Reproduced with permission.^[85] Copyright 2024, American Chemical Society. (B) Schematic diagram showing cation effects with alkali metal electrolyte.^[91] Copyright 2022, Elsevier. (C) FE values of the gaseous products generated during the CO₂RR with different organic cations and anions.^[96] (D) Schematic diagram showing replacement of metal cations with bulk organic cations and their weakly coordinated local environment. Reproduced with permission.^[97] Copyright 2023, American Chemical Society.

FIGURE 6

(A) Schematic of an electrochemical gaseous CO₂RR PTE cathode and its fundamental components. Reproduced with permission [12]. Copyright 2024, American Chemical Society. (B) Schematic of CO₂ conversion in the cathode compartment of a liquid‐fed bicarbonate electrolyzer. Reproduced with permission [124]. Copyright 2023, American Chemical Society. (C) Faradaic efficiencies of the major products and the applied potential at various CO₂ feed flow rates at different current densities. Reproduced with permission [113]. Copyright 2020, Elsevier. (D) Illustration and FE of the three gas conditions: Ar (0% CO₂), dry CO₂, and humidified CO₂, explored in the gas chamber of the hybrid reactor. Reproduced with permission [114]. Copyright 2022, American Chemical Society. (E) FEs toward formate and CO₂RR partial current densities on Au, Ag, and Sn catalysts under different pressures at −1.1 V versus RHE. Reproduced with permission [128]. Copyright 2022, Springer Nature. (F) Illustration of the FTDT cell for pumping CO₂‐saturated catholyte throughout a porous electrode with CO₂ exsolution from the dynamic equilibria E1 and E2. Reproduced with permission [129]. Copyright 2022, Springer Nature. CEM, cation exchange membrane; GDL, gas diffusion layer.

FIGURE 7

(A) Structure of different commercially available carbon gas diffusion layers observed through X‐ray computed tomography. (B) Comparing commercially available carbon PTL‐based electrodes in the CO₂ reduction reaction at MEA with Ag catalyst. Reproduced with permission [144]. Copyright 2023, Springer Nature. (C) SEM image of Cu nanoparticles sputtered on the PTFE PTL. Reproduced with permission [196]. Copyright 2021, Springer Nature. (D) Sketches of a traditional ePTFE/Cu (top) and ePTFE/NICC/ Cu electrode (bottom). Current collection lines are depicted in blue. (E) Observed selectivity toward ethylene for the three designs at a constant potential of ≈–0.55 V versus RHE. Reproduced with permission [35]. Copyright 2023, Springer Nature.
