Development of a colony lift immunoassay to facilitate rapid detection and quantification of Escherichia coli O157:H7 from agar plates and filter monitor membranes

Abstract

E. coli O157:H7 is a food-borne adulterant that can cause hemorrhagic ulcerative colitis and hemolytic uremic syndrome. Faced with an increasing risk of foods contaminated with E. coli O157:H7, food safety officials are seeking improved methods to detect and isolate E. coli O157:H7 in hazard analysis and critical control point systems in meat- and poultry-processing plants. A colony lift immunoassay was developed to facilitate the positive identification and quantification of E. coli O157:H7 by incorporating a simple colony lift enzyme-linked immunosorbent assay with filter monitors and traditional culture methods. Polyvinylidene difluoride (PVDF) membranes (Millipore, Bedford, Mass.) were prewet with methanol and were used to make replicates of every bacterial colony on agar plates or filter monitor membranes that were then reincubated for 15 to 18 h at 36 +/- 1 degree C, during which the colonies not only remained viable but were reestablished. The membranes were dried, blocked with blocking buffer (Kirkegaard and Perry Laboratories [KPL], Gaithersburg, Md.), and exposed for 7 min to an affinity-purified horseradish peroxidase-labeled goat anti-E. coli O157 antibody (KPL). The membranes were washed, exposed to a 3,3',5,5'-tetramethylbenzidine membrane substrate (TMB; KPL) or aminoethyl carbazole (AEC; Sigma Chemical Co., St. Louis, Mo.), rinsed in deionized water, and air dried. Colonies of E. coli O157:H7 were identified by either a blue (via TMB) or a red (via AEC) color reaction. The colored spots on the PVDF lift membrane were then matched to their respective parent colonies on the agar plates or filter monitor membranes. The colony lift immunoassay was tested with a wide range of genera in the family Enterobacteriaceae as well as different serotypes within the E. coli genus. The colony lift immunoassay provided a simple, rapid, and accurate method for confirming the presence of E. coli O157:H7 colonies isolated on filter monitors or spread plates by traditional culture methods. An advantage of using the colony lift immunoassay is the ability to test every colony serologically on an agar plate or filter monitor membrane simultaneously for the presence of the E. coli O157 antigen. This colony lift immunoassay has recently been successfully incorporated into a rapid-detection, isolation, and quantification system for E. coli O157:H7, developed in our laboratories for retail meat sampling.

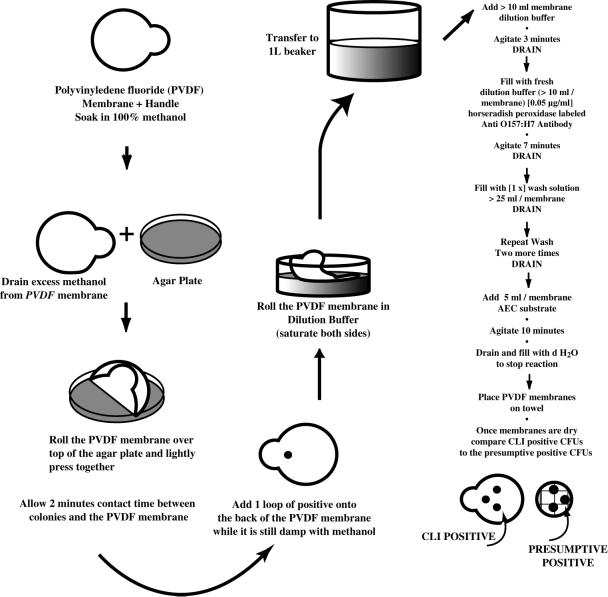

FIG. 1

Flow chart of the optimized CLI protocol. d H₂O, distilled water.

FIG. 2

A 4 row by 7 column checkerboard assay used to optimize the antibody concentration and conjugate incubation time of the CLI. Wedge 1, O157:H45 (KPL 300386); wedge 2, O157:H3 (KPL 300489); wedges 3 and 4, O157:H7. Filled spots represent strong substrate reactions, shaded spots represent weak substrate reactions, and open spots indicate no substrate reaction.

FIG. 3

Results of CLI performed on an agar plate containing isolated colonies of E. coli O157:H7 incubated for 15 to 18 h at 37°C. Arrows point to the same colony on both the PVDF membrane (left) and the nutrient agar plate (right).

FIG. 4

Results of CLI performed on a filter monitor membrane (Biopath, Inc.) containing isolated colonies of E. coli O157:H7 incubated for 15 to 18 h at 37°C. Arrows point to the same colony on both the PVDF membrane (right) and the filter monitor membrane (left).
